How to disable or remove aberration correction data for lenses

Discussion in 'Canon EOS M Series' started by Andreas17, May 15, 2021.

Page 1 of 2
  1. Andreas17

    Andreas17 New Member

    Joined:
    May 15, 2021
    Messages:
    9
    Equipment:
    EOS M50, EF-EOS-M Adapter, EF-M 15-45mm, Tamron EF-S 16-300mm, Sigma EF 50-500mm
    Hello

    I've discovered a wrong aberration correction takes effect with my EOS M50 / EF-EOS-M Adapter / Tamron 16-300mm when I use focal length between 16 and 18mm. The camera modes P / Tv / Av and M allows to switch off aberration correction completely and then the pictures are fine. But the other automated modes doesn't offer the menu to disable aberration correction. So I wanted to remove the data for at least my Tamron 16-300mm. But I could not find any possibility.

    Does somebody knows the secret how to fix that? The EOS Utility 3.13.20.4 displays a huge list of supported lenses but no possibility to modify or delete them.

    Thanks in advance, Andreas

    Andreas17, May 15, 2021
    #1

  2. Craig Sherriff

    Craig Sherriff Well-Known Member Site Supporter

    Joined:
    Apr 25, 2017
    Messages:
    3,174
    Location:
    Tasmania, Australia
    Equipment:
    60D, 10D, 50D 1dmark3, T70, AV1, lenses ranging from 28mm to 600 mm, canonet Junior, Canonet QL 25, Mamiya C3 and 3 lens sets,Mamiya 645 pro TL and 3 lenses. Pentax MG and various lenses, Toyoview 4 * 5 inch large format camera,Calimat C1 8*10 inch ultra large format camera.
    Welcome. Andreas17. may I suggest you direct your query to Johnsey as he is knowable in this area.

    Craig Sherriff, May 15, 2021
    #2
  3. Andreas17

    Andreas17 New Member

    Joined:
    May 15, 2021
    Messages:
    9
    Equipment:
    EOS M50, EF-EOS-M Adapter, EF-M 15-45mm, Tamron EF-S 16-300mm, Sigma EF 50-500mm
    Thanks Craig.
    Hope he will find it. Or is there a secret how to make him aware?

    Andreas17, May 16, 2021
    #3
  4. Craig Sherriff

    Craig Sherriff Well-Known Member Site Supporter

    Joined:
    Apr 25, 2017
    Messages:
    3,174
    Location:
    Tasmania, Australia
    Equipment:
    60D, 10D, 50D 1dmark3, T70, AV1, lenses ranging from 28mm to 600 mm, canonet Junior, Canonet QL 25, Mamiya C3 and 3 lens sets,Mamiya 645 pro TL and 3 lenses. Pentax MG and various lenses, Toyoview 4 * 5 inch large format camera,Calimat C1 8*10 inch ultra large format camera.
    Anreas 17 simply address the question to him, he is very approachable and willing to help.

    Craig Sherriff, May 16, 2021
    #4
  5. Caladina

    Caladina Well-Known Member

    Joined:
    Jan 30, 2020
    Messages:
    1,780
    Equipment:
    Canon M50
    Canon 18-45mm m, Canon 18-150mm m, Canon 55-200mm m, Canon 22mm m, Canon 28mm m macro,
    Sigma 100-400c ef, Sigma 18-35mm art ef,
    7artisans 7.5mm m, Laowa 100mm macro ef, laowa 9mm zeroD m, Vintage M42 Lenses:
    Ashi Super - Takumar 1.8 / 55mm,
    does the tamron lens have a hub for data fixes and customization, i have the M50 and mostly use the manual mode and have lens corrections off, i doubt the other automated modes will allow alteration, they seem pretty much 'here's how it is"
    there are a couple of those that are useful but it seems you have to use them as is.
    i've not looked deeply into it so there may be hope.
    you could try reporting it to canon and it might lead to an addition in a future firmware update

    Caladina, May 16, 2021
    #5
  6. johnsey

    johnsey Site Moderator Staff Member Site Supporter

    Joined:
    Apr 21, 2017
    Messages:
    2,133
    Location:
    Fargo, ND
    Equipment:
    5dMk4, 5dsR, 5dMk2, 20D, 70-200 2.8L IS, 100mm 2.8 Macro USM, 50mm 1.4, 85mm 1.8, 17-40mm 4.0L, TS-E 24mm 3.5L II, Rokinon 14mm 2.8; Pixma Pro-100
    Far as I knew, the EOS utility is loaded with just canon lenses, that being said 3 party software like Lightroom you can add 3rd part lens profiles. I have no Tamron lenses so I can't help specifically with theirs, my as assumption is you are applying a correction meant for a canon lens which is why it doesn't work right. This is something I would shoot raw and edit in post, I usually do not apply lens correction in camera.

    Last edited: May 18, 2021
    johnsey, May 17, 2021
    #6
  7. Andreas17

    Andreas17 New Member

    Joined:
    May 15, 2021
    Messages:
    9
    Equipment:
    EOS M50, EF-EOS-M Adapter, EF-M 15-45mm, Tamron EF-S 16-300mm, Sigma EF 50-500mm
    I guess I need to illustrate the missing menu.

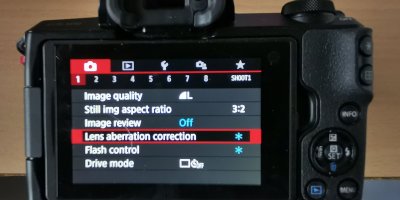

    In P/ Av / Tv or M mode I can see the menu "Lens aberration correction"

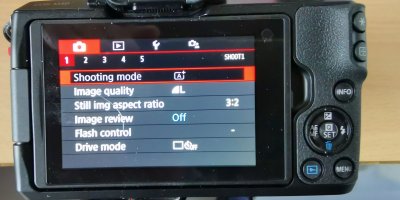

    In Automated mode this menu is missing
    The lens Tamron 16-300mm appears only in the camera menu but not in the Canon Utility tool. So I could not find any way to remove it.

    Does somebody know a hack how to remove the wrong data? Or do you think Canon will fix it?


    Attached Files:

    Andreas17, May 18, 2021
    #7
  8. johnsey

    johnsey Site Moderator Staff Member Site Supporter

    Joined:
    Apr 21, 2017
    Messages:
    2,133
    Location:
    Fargo, ND
    Equipment:
    5dMk4, 5dsR, 5dMk2, 20D, 70-200 2.8L IS, 100mm 2.8 Macro USM, 50mm 1.4, 85mm 1.8, 17-40mm 4.0L, TS-E 24mm 3.5L II, Rokinon 14mm 2.8; Pixma Pro-100
    The document with the line through it means there is no correction data, I don not believe there is a way to add a 3rd party profile to the camera, but again I have not tried. I believe the camera is simply telling you which lens is attached and if you have the ability to apply correction or not. Even if there was a profile that existed for this lens it would apply to Crop DSLRs and would likely have incorrect changes when applied to an M mount camera. With a 3rd part lens on an adapter your looking at turning everything off and applying in post your corrections.

    If you want to reapply your firmware and try to clear it out you can try, but I believe it is getting the lens name from the lens itself and the word doc with line through it tells you if you have a profile on the camera that matches. ( Again I do not have an M50 to test and be sure of this).

    johnsey, May 18, 2021
    #8
  9. Andreas17

    Andreas17 New Member

    Joined:
    May 15, 2021
    Messages:
    9
    Equipment:
    EOS M50, EF-EOS-M Adapter, EF-M 15-45mm, Tamron EF-S 16-300mm, Sigma EF 50-500mm
    When I mount my other lens Sigma 50-500mm then the camera states it has no correction data - which is fine.
    Is there a tool to remove such correction data? It's better to have none instead of wrong ones for me.

    Andreas17, May 18, 2021
    #9
  10. Caladina

    Caladina Well-Known Member

    Joined:
    Jan 30, 2020
    Messages:
    1,780
    Equipment:
    Canon M50
    Canon 18-45mm m, Canon 18-150mm m, Canon 55-200mm m, Canon 22mm m, Canon 28mm m macro,
    Sigma 100-400c ef, Sigma 18-35mm art ef,
    7artisans 7.5mm m, Laowa 100mm macro ef, laowa 9mm zeroD m, Vintage M42 Lenses:
    Ashi Super - Takumar 1.8 / 55mm,
    with my sigma lenses there is a dock that you can get, i have it but have never used it, does tamron have anything like that?
    used for firmware updates and custom settings

    Caladina, May 18, 2021
    #10
  11. rayallen

    rayallen Well-Known Member Site Supporter

    Joined:
    Apr 26, 2017
    Messages:
    1,277
    I have the USB dock for one of my Sigma lenses (17-70mm Contemporary) but I have never heard of anything like that for Tamron lenses.

    rayallen, May 18, 2021
    #11
  12. johnsey

    johnsey Site Moderator Staff Member Site Supporter

    Joined:
    Apr 21, 2017
    Messages:
    2,133
    Location:
    Fargo, ND
    Equipment:
    5dMk4, 5dsR, 5dMk2, 20D, 70-200 2.8L IS, 100mm 2.8 Macro USM, 50mm 1.4, 85mm 1.8, 17-40mm 4.0L, TS-E 24mm 3.5L II, Rokinon 14mm 2.8; Pixma Pro-100
    Did you purchase the m50 new yourself?
    Canon does not make 3rd party profiles so there would be nothing to remove, it may do a bad job of warning that some types of lens are not supported. The sigma is an EF, the Tamron an EF-S neither are native M mount. These are not an apple to apple comparison, and non canon gear can act funny depending on the lens age/firmware.

    I did suggest you update your firmware on the m50 if you have not.
    And you could look at having the Tamron lens firmware updated on it maybe the canon would send a proper not supported warning in that case. https://www.tamron.jp/en/support/update.html

    johnsey, May 18, 2021
    #12
  13. Andreas17

    Andreas17 New Member

    Joined:
    May 15, 2021
    Messages:
    9
    Equipment:
    EOS M50, EF-EOS-M Adapter, EF-M 15-45mm, Tamron EF-S 16-300mm, Sigma EF 50-500mm
    Yes I purchased the M50 new two weeks ago, together with the EF-EOS-M adapter. The firmware was already up to date with 1.1.0.
    Both lenses work as perfect as designed.

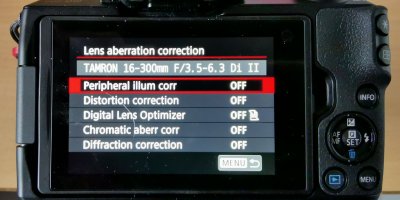

    The only thing I've a reason to complain is that I cannot turn off the abberration correction in automated mode. Canon would be able to solve that with a firmware update. Two pictures illustrates that: IMG_0120a.jpg with and IMG_0121a.jpg without.


    Attached Files:

    Andreas17, May 19, 2021
    #13
  14. GDN

    GDN Well-Known Member

    Joined:
    Jul 22, 2018
    Messages:
    2,169
    Location:
    South Island, NZ
    Equipment:
    A little Canon stuff
    Here it is Ray.

    TAMRON | TAP-in Console

    But it is not shown in Canon mount.

    Gary

    GDN, May 19, 2021
    #14
    rayallen likes this.
  15. rayallen

    rayallen Well-Known Member Site Supporter

    Joined:
    Apr 26, 2017
    Messages:
    1,277
    Thanks for that info, Gary. I am now better educated.
    Doesn't matter that it is now shown in Canon mount. My Sigma 17-70mm is in Pentax Mount. :)

    rayallen, May 19, 2021
    #15
  16. Caladina

    Caladina Well-Known Member

    Joined:
    Jan 30, 2020
    Messages:
    1,780
    Equipment:
    Canon M50
    Canon 18-45mm m, Canon 18-150mm m, Canon 55-200mm m, Canon 22mm m, Canon 28mm m macro,
    Sigma 100-400c ef, Sigma 18-35mm art ef,
    7artisans 7.5mm m, Laowa 100mm macro ef, laowa 9mm zeroD m, Vintage M42 Lenses:
    Ashi Super - Takumar 1.8 / 55mm,
    the automatic modes in the canon are probably not going to allow for much adjustments by design.
    was it one of the special effects modes you wanted to use the lens with?

    Caladina, May 19, 2021
    #16
  17. Andreas17

    Andreas17 New Member

    Joined:
    May 15, 2021
    Messages:
    9
    Equipment:
    EOS M50, EF-EOS-M Adapter, EF-M 15-45mm, Tamron EF-S 16-300mm, Sigma EF 50-500mm
    I'm satisfied when I can disable the lens adjustments in automatic mode. But for that Canon needs to modify the firmware so that the menu becomes available in all modes and not only for P/Av/Tv/M.

    Andreas17, May 19, 2021
    #17
  18. Caladina

    Caladina Well-Known Member

    Joined:
    Jan 30, 2020
    Messages:
    1,780
    Equipment:
    Canon M50
    Canon 18-45mm m, Canon 18-150mm m, Canon 55-200mm m, Canon 22mm m, Canon 28mm m macro,
    Sigma 100-400c ef, Sigma 18-35mm art ef,
    7artisans 7.5mm m, Laowa 100mm macro ef, laowa 9mm zeroD m, Vintage M42 Lenses:
    Ashi Super - Takumar 1.8 / 55mm,
    which mode you want it disabled in, i have something i can try with mine.
    ok looks like it is fully fix mode, what you see is what you get, best solution is to recreate the effect in manual, what ever it is you are doing,
    have you tried turning off the correction in M then switching to scooby doo mode?

    Last edited: May 20, 2021
    Caladina, May 20, 2021
    #18
  19. Andreas17

    Andreas17 New Member

    Joined:
    May 15, 2021
    Messages:
    9
    Equipment:
    EOS M50, EF-EOS-M Adapter, EF-M 15-45mm, Tamron EF-S 16-300mm, Sigma EF 50-500mm
    Yes - I've turned off all corrections which works for P/Av/Tv/M modes.
    But this setting is just ignored in automated modes - I guess what you mean with scooby doo.
    So I got the idea to remove the values of this lense so it cannot be take effect. But I could not find any possibility - neither on the camera nor with EOS utilities.
    I've raised a support incident yesterday but no answer yet. Until then I'm restricted to the P/Av/Tv/M modes. It's not a disaster but quite ugly.

    Andreas17, May 20, 2021
    #19
  20. johnsey

    johnsey Site Moderator Staff Member Site Supporter

    Joined:
    Apr 21, 2017
    Messages:
    2,133
    Location:
    Fargo, ND
    Equipment:
    5dMk4, 5dsR, 5dMk2, 20D, 70-200 2.8L IS, 100mm 2.8 Macro USM, 50mm 1.4, 85mm 1.8, 17-40mm 4.0L, TS-E 24mm 3.5L II, Rokinon 14mm 2.8; Pixma Pro-100
    Can I ask what value the full auto/scene mode adds over the program(P) mode? They are both automatic, the full auto mode by design takes all control away from the user.

    johnsey, May 20, 2021
    #20
