Viewfinder grid display 80D

Discussion in 'Technical Troubleshooting' started by Traveller3216, Mar 4, 2019.

  1. Traveller3216

    Traveller3216 New Member

    Joined:
    Mar 4, 2019
    Messages:
    5
    Equipment:
    EOS 80D
    Hi on my 80D I was able to see 3 different grid patterns in the viewfinder. 3x3, 6x4 and 3x3+ diagonal. After making some adjust to other settings I can no longer see these. Canon helpdesk tells me these grids are only available in Liveview. I disagree as they were definitely in the viewfinder as well. How do I make them visible again? And yes, in the Viewfinder Display option I do have it set to Show.

    Traveller3216, Mar 4, 2019
    #1

  2. porkphoto

    porkphoto Well-Known Member Site Supporter

    Joined:
    May 9, 2017
    Messages:
    871
    Location:
    Southern California, USA
    Equipment:
    Cameras 1DmkIII, 1DSmkII, 50d, 7d, 6d, 70d, 5Ds ,90D , R7, R5
    Lens 17-40 f4L, 24-70 f4L IS, 100 f2.8L IS macro, 200 f2.8L, 300 f4L IS, 300 f2.8L, 100-400 f4.5-5.6L IS, 500mm f4L IS
    What other adjustments and to what feature did you change, this info might help us steer us in the right direction to help you.

    porkphoto, Mar 5, 2019
    #2
  3. rayallen

    rayallen Well-Known Member Site Supporter

    Joined:
    Apr 26, 2017
    Messages:
    1,277
    I would suggest doing a reset to factory settings. I'm not sure where that would be on an 80D but it will be there somewhere.

    rayallen, Mar 5, 2019
    #3
  4. Traveller3216

    Traveller3216 New Member

    Joined:
    Mar 4, 2019
    Messages:
    5
    Equipment:
    EOS 80D
    I have already done that several times, with nil effect.

    Traveller3216, Mar 5, 2019
    #4
  5. Traveller3216

    Traveller3216 New Member

    Joined:
    Mar 4, 2019
    Messages:
    5
    Equipment:
    EOS 80D
    I was having a "general" play around, so honestly cannot be certain which parameters I have changed.

    Traveller3216, Mar 5, 2019
    #5
  6. johnsey

    johnsey Site Moderator Staff Member Site Supporter

    Joined:
    Apr 21, 2017
    Messages:
    2,131
    Location:
    Fargo, ND
    Equipment:
    5dMk4, 5dsR, 5dMk2, 20D, 70-200 2.8L IS, 100mm 2.8 Macro USM, 50mm 1.4, 85mm 1.8, 17-40mm 4.0L, TS-E 24mm 3.5L II, Rokinon 14mm 2.8; Pixma Pro-100
    Look up the viewfinder in the user manual... There's a number of things you can do like turn on an electronic level.

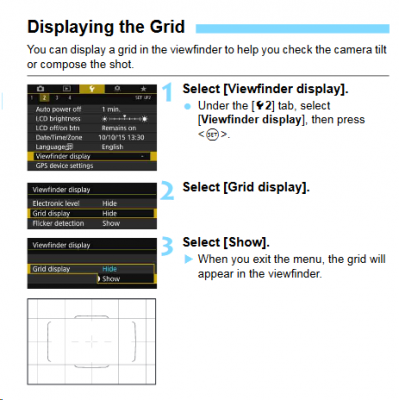

    As to turning on your grid...

    johnsey, Mar 5, 2019
    #6
  7. Traveller3216

    Traveller3216 New Member

    Joined:
    Mar 4, 2019
    Messages:
    5
    Equipment:
    EOS 80D
    Thanks johnsey. I have done that but it's not resolving the issue

    Traveller3216, Mar 5, 2019
    #7
  8. porkphoto

    porkphoto Well-Known Member Site Supporter

    Joined:
    May 9, 2017
    Messages:
    871
    Location:
    Southern California, USA
    Equipment:
    Cameras 1DmkIII, 1DSmkII, 50d, 7d, 6d, 70d, 5Ds ,90D , R7, R5
    Lens 17-40 f4L, 24-70 f4L IS, 100 f2.8L IS macro, 200 f2.8L, 300 f4L IS, 300 f2.8L, 100-400 f4.5-5.6L IS, 500mm f4L IS
    If you have Face + Tracking selected I believe the 80d will disable grid in the view finder. Try selecting another mode.

    porkphoto, Mar 5, 2019
    #8
